AVM - AS 2.3 - Inspiration Streaming Integrated Amplifier
SKU
AVM-AS-2.3
AVM - AS 2.3 - Inspiration Streaming Integrated Amplifier is available to buy in increments of 1
No further discounts or coupons apply.
FREE delivery OVER $35 (USA ONLY)
30-day return

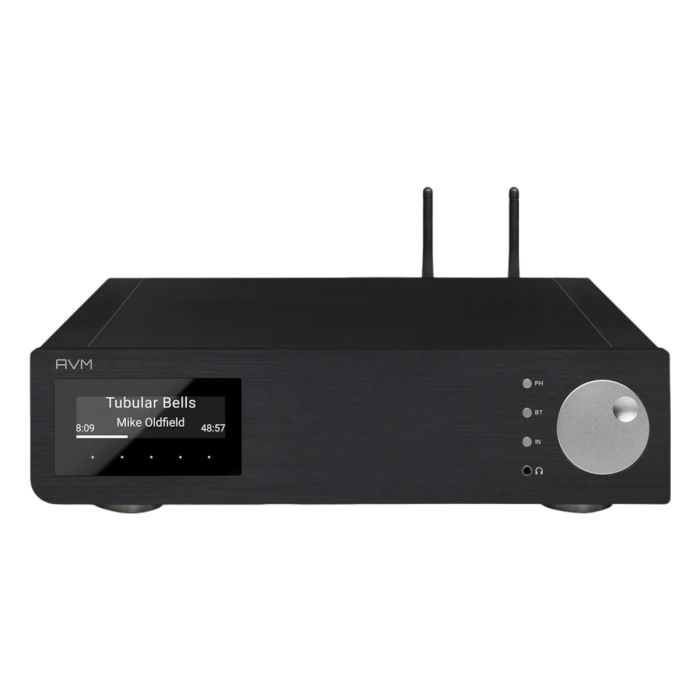

AVM - AS 2.3 - 280W Inspiration Streaming Integrated Amplifier
The AVM Inspiration AS 2.3 is a compact high-performance integrated amplifier that combines substantial two-channel power with a complete modern streaming platform. Delivering 2 x 140 watts into 4 Ohms, the AS 2.3 is designed to provide the authority and control needed for a wide variety of high-quality loudspeakers while maintaining the clean, minimalist form of AVM's Inspiration series. Its screw-free aluminum enclosure draws design inspiration from AVM's flagship components, giving the amplifier a refined appearance suited to contemporary listening spaces.
At the heart of the AS 2.3 is AVM's X-STREAM Engine®, which supports high-resolution playback up to DSD256 and 32-bit/384kHz PCM. Built-in streaming services and protocols include AirPlay, Qobuz, Roon Ready, Spotify, TIDAL Connect MAX, and HighResAudio, while dual-band Wi-Fi and Ethernet provide flexible network connectivity. Bluetooth 5.0 LE, HDMI ARC, USB-A, and optical and coaxial digital inputs make it easy to integrate televisions, storage devices, wireless sources, and conventional digital components into a single system.
The AS 2.3 also offers extensive analog connectivity, including a dedicated MM/MC phono stage for turntables plus Pre-Out, Line-Out, and headphone outputs. Newly integrated volume-controlled digital outputs further expand system integration possibilities, while the RC X App provides convenient control of playback, streaming services, and large music collections. With its combination of strong amplification, versatile analog and digital connectivity, and future-updatable streaming architecture, the AS 2.3 is designed as a compact centerpiece for a complete high-performance audio system.
FEATURES:
- High-performance integrated amplifier with built-in network streaming
- Delivers 2 x 140W into 4 Ohms for powerful two-channel playback
- AVM X-STREAM Engine® supports high-resolution network audio
- Supports DSD256 and PCM playback up to 32-bit/384kHz
- Streaming support includes AirPlay, Qobuz, Roon Ready, Spotify, TIDAL Connect MAX, and HighResAudio
- RC X App provides intuitive control and music-library management
- HDMI ARC input simplifies connection to compatible televisions
- Bluetooth 5.0 LE provides convenient wireless playback
- High-performance MM and MC phono input supports turntable integration
- USB-A input supports compatible USB hard drives and flash drives
- Optical and coaxial digital inputs support high-resolution digital sources
- Volume-controlled optical and coaxial digital outputs expand system flexibility
- Pre-Out, Line-Out, and headphone outputs support additional system configurations
- Dual-band 2.4GHz and 5GHz Wi-Fi with 802.11a/b/g/n/ac support
- 100Mbit/s Ethernet connection provides stable wired network access
- Supports WAV, MP3, WM, AAC, FLAC, ALAC, DSD, Ogg, and AIFF file formats
- Low standby power consumption of less than 0.5W
- Compact screw-free aluminum chassis inspired by AVM flagship designs
- Available in premium AVM Inspiration finishes including Bronze Edition
SPECIFICATIONS:
| Power Amplifier | |
| Gain Factor: | 30 |
| Distortion Factor: | < 0.005% |
| Signal-to-Noise Ratio: | > 95dB |
| Input Sensitivity: | 275mV |
| Frequency Response (-3dB): | < 5Hz to > 80kHz |
| Output Power (1% THD, 4 Ohms, 2 Channels): | 2 x 140W |
| Preamplifier (Pre-Out) | |
| Input Impedance: | 3.4k Ohms |
| Output Impedance: | 470 Ohms |
| Gain Factor: | 1 |
| Distortion Factor: | < 0.001% |
| Signal-to-Noise Ratio: | > 100dB |
| Frequency Response (-3dB): | < 5Hz to > 80kHz |
| Crosstalk Attenuation (Channels): | > 95dB |
| Crosstalk Attenuation (Inputs): | > 85dB |
| Input Headroom (1% THD): | 3.5V |
| Output Headroom (1% THD): | 3V |
| Preamplifier (Line-Out) | |
| Output Impedance: | 47 Ohms |
| Gain Factor: | 1 |
| Distortion Factor: | < 0.001% |
| Signal-to-Noise Ratio: | > 100dB |
| Output Headroom (1% THD): | 3.5V |
| Preamplifier (Headphone-Out) | |
| Output Impedance: | 80 Ohms |
| Gain Factor: | 4 |
| Distortion Factor: | < 0.001% |
| Signal-to-Noise Ratio: | > 100dB |
| Output Headroom (1% THD): | 4.5V |
| Preamplifier (Phono) | |
| RIAA Equalization: | < 0.2dB |
| Gain MM: | 40dB |
| Signal-to-Noise Ratio MM: | > 83dB(A) |
| Gain MC: | 60dB |
| Signal-to-Noise Ratio MC: | > 74dB(A) |
| Input Headroom MM (1% THD): | 30mV |
| Input Headroom MC (1% THD): | 3mV |
| Network | |
| LAN Connection: | 100Mbit/s, Hot-Plugging Capable |
| Supported WLAN / Wi-Fi Standards: | 2.4 / 5GHz 802.11a/b/g/n/ac |
| Number of Antennas: | 2 |
| WPS: | Yes |
| Streaming | |
| Maximum Sampling Rates: | DSD256, 32-bit/384kHz PCM |
| Streaming Services: | AirPlay, Qobuz, Roon Ready, Spotify, TIDAL Connect MAX, HighResAudio |
| Supported File Formats: | WAV, MP3, WM, AAC, FLAC, ALAC, DSD, Ogg, AIFF |
| Bluetooth | |
| Bluetooth Standard: | 5.0 LE |
| Supported Bluetooth Profiles: | AVRCP 1.5, A2DP |
| USB Input (Rear) | |
| USB Standard: | USB 2.0 |
| Maximum Current: | 500mA |
| Supported Formats: | FAT16, FAT32, NTFS |
| USB Input Usage: | The USB input is exclusively for hard drives and USB sticks. |
| Digital Inputs (S/PDIF / Coaxial) | |
| Maximum Sampling / Bit Rate (Optical): | 96kHz / 24-bit |
| Deemphasis (Optical): | Yes, Automatic |
| Maximum Sampling / Bit Rate (Coaxial): | 192kHz / 24-bit |
| Minimum Signal Level at 195kHz (Coaxial): | > 150mVpp |
| Input Impedance (Coaxial): | 75 Ohms |
| Maximum Sampling / Bit Rate (ARC): | 192kHz / 24-bit |
| ARC Input Impedance: | 100 Ohms |
| Maximum Digital Input Cable Length: | 9.8' (3m) |
| Digital Outputs (S/PDIF / Coaxial) | |
| Maximum Sampling / Bit Rate (Optical): | 96kHz / 24-bit |
| Maximum Sampling / Bit Rate (Coaxial): | 192kHz / 24-bit |
| Output Impedance (Coaxial): | 75 Ohms |
| Maximum Digital Output Cable Length: | 9.8' (3m) |
| Power Consumption | |
| Standby: | < 0.5W |
| Extended Standby (Network Connection): | < 2W |
| Idle: | < 16W |
| Fuse: | T 3.15A H |
| General | |
| Mains Voltage / Frequency: | 100 - 240V / 50 - 60Hz |
| Operating Altitude: | Up to 6,562' (2,000m) |
| Allowed Temperature Range: | 68°F - 86°F (20°C - 30°C) |
| Weight: | 15.7 lbs. (7.1kg) |
| Dimensions (W x H x D): | 13.4" x 3.6" x 12.8" (340 x 92 x 325mm) |
| Warranty: | 2 Years (+2 Years with Online Registration*) |
