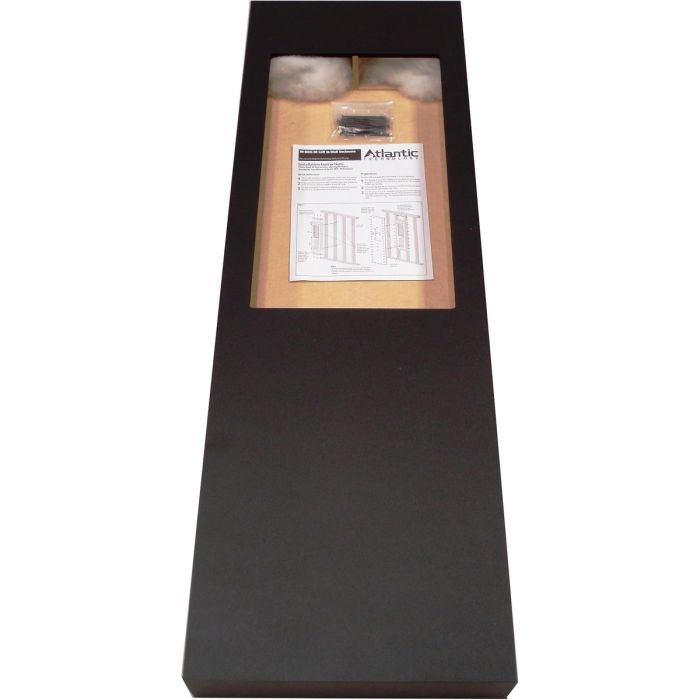

Atlantic Technology - In-Box-30 LCR - In-Wall Enclosure (Single)
SKU
AT-IN-BOX-30
Atlantic Technology - In-Box-30 LCR - In-Wall Enclosure (Single) is available to buy in increments of 1
FREE delivery OVER $35 (USA ONLY)
30-day return
Atlantic Technology - In-Box-30 LCR - In-Wall Enclosure (Single)
The Atlantic Technology IN-BOX-30 LCR is a dedicated new-construction enclosure designed exclusively for the IWTS-30 LCR in-wall speaker. It provides the internal air volume required for the speaker to perform as intended and must be used with the IWTS-30 LCR to maintain applicable THX certification. The enclosure also provides moderate acoustic isolation, helping reduce the amount of sound transferred into the room behind the installed speaker.
The enclosure is designed for installation before drywall is applied and fits standard wall framing constructed with 2" x 4" studs spaced 16" on center. Installation in walls with studs spaced 24" on center is possible when additional framing is added to support both sides of the enclosure. Pre-installed polyester fiber batting provides the proper amount of acoustic damping and should remain in its original position without being compressed or supplemented.
For maximum stability, Atlantic Technology recommends supporting the enclosure with cross studs above and below, keeping its front flange flush with the front edges of the wall studs. Construction adhesive and screws should be used liberally to minimize vibration, rattling, and eventual wallboard movement. The speaker-wire opening should be drilled through the enclosure and adjacent stud, then completely sealed with flexible silicone caulk before the wallboard and IWTS-30 LCR speaker are installed.
FEATURES:
- New-construction in-wall enclosure for the Atlantic Technology IWTS-30 LCR
- Provides the correct internal volume for optimized speaker performance
- Required with the IWTS-30 LCR to maintain THX system certification
- Provides moderate sound isolation for the room behind the speaker
- Pre-installed polyester fiber batting provides proper acoustic damping
- Designed for installation before drywall is applied to the wall studs
- Fits standard 2" x 4" stud walls with studs spaced 16" on center
- Can accommodate 24" stud spacing with additional framing modifications
- Requires wallboard measuring at least 5/8" thick for certified installations
- Front flange installs flush with the front face of the wall studs
- Cross-stud support above and below the enclosure improves installation stability
- Construction adhesive and screws help reduce vibration and wall resonance
- Speaker-wire opening can be drilled through the enclosure side and adjoining stud
- Wire opening should be sealed with flexible silicone construction caulk
- Includes: Mounting screws, Framing Lumber, Shims, Flexible Caulk for securing the enclosure
SPECIFICATIONS:
| Product Type | New-Construction In-Wall Speaker Enclosure |
|---|---|
| Model | IN-BOX-30 LCR |
| Speaker Compatibility | Atlantic Technology IWTS-30 LCR Only |
| Installation Type | New Construction, Before Wallboard Installation |
| Wall Construction | 2" x 4" or 2" x 6" Stud Wall |
| Standard Stud Spacing | 16" On Center |
| Optional Stud Spacing | 24" On Center with Additional Framing Modifications |
| Minimum Wallboard Thickness | 5/8" |
| Acoustic Damping | Pre-Installed Polyester Fiber Batting |
| Sound Isolation | Moderate Isolation for the Adjacent Room |
| THX Certification | Required with the IWTS-30 LCR to Maintain THX Certification |
| Speaker Opening Position | 19.63" from the Bottom of the Enclosure |
| Speaker-Wire Opening | 3/4" Drilled Hole, Sealed with Flexible Silicone Caulk |
| Recommended Fastener Spacing | Approximately Every 6" |
| Dimensions (W x H x D) | 14.5" x 45.5" x 3.5" |
| Weight | 15.0 lbs. (6.9kg) |
| Shipping Weight | 20.0 lbs (9.0kg) |
