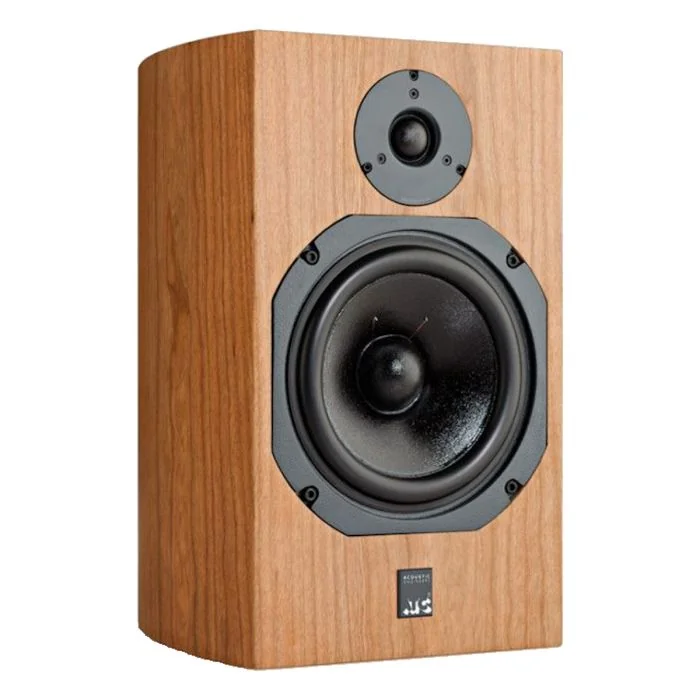

ATC - SCM11 - Entry Series 6" 2-Way Passive Bookshelf Speakers (Pair)
SPECIAL ORDER: Please allow 1-2 weeks for Processing and Shipping. For more information please send us a message. Or, call 877-370-1972. Thank you.
ATC - SCM11 - Entry Series 6" 2-Way Passive Bookshelf Speakers (Pair)
ATC SCM11 speakers embody entry-level hi-fi sophistication, offering compact size without compromising on sound quality. With ATC's renowned drive units, they deliver precise, dynamic audio reproduction, ideal for smaller rooms or as part of a high-fidelity audio system.
Manufactured in-house to exact tolerances, ATC’s drivers are legendary for their many design innovations. For instance, our hand-wound short voice coils use only high-density edge-wound flat OFC wire and operate in a precision long magnetic gap. Front and rear magnetic venting not only reduces airflow and noise but increases power handling and long-term reliability. Meanwhile, massive motor assemblies offer no-compromise optimization for each voice coil diameter.
The unique ‘Soft Dome’ technology was developed by ATC in 1976. Its arrival revolutionized professional studio monitoring. Remarkably today, as then, it remains the only mid-range device capable of giving ultimate performance.
"An excellent, if slightly 'off the beaten track' design. ATC doesn't follow fashion; it just does superbly engineered, really well-built loudspeakers for grown-ups. It's not the latest and greatest in terms of styling, but who cares? The SCM11 is extremely capable at its price point and deserves auditioning if you're in the market for such a thing."
Stereonet, May 2022
By James Michael Hughes
Constrained Layer Damping (CLD) is a new driver cone technology from ATC that has been integrated into the SCM11 monitor and represents a step-change in driver-to-system performance and reproduction of music. Advantages include reduced harmonic distortion between 300Hz and 3kHz compared to a conventional cone; extended resonance frequency response (that eases constraints on cross-over filter slopes); and improvements in off-axis response.
Built to give a lifetime of service and musical enjoyment, all ATC products carry a 6-Year Manufacturer's Warranty.
FEATURES:
- New ATC designed and built 25mm (0.98") soft dome HF unit with precision alloy wave guide
- Precision undercut bass pole
- “CLD” driver technology with 45mm integral soft dome
- In-house, hand-wound precision flat wire coil
- Massive optimised motor assembly
- Flat impedance curve allowing easy load for amplifiers
- 6-Year Manufacturer's Warranty
SPECIFICATIONS:
Drivers: | HF ATC 25mm (0.98") Neodymium soft dome, Mid/LF ATC 150mm (5.91") CLD |
Matched Response: | ±0.5dB |
Frequency Response (-6dB): | 56Hz - 22kHz |
Dispersion: | ±80° Coherent Horizontal, ±10° Coherent Vertical |
Sensitivity: | 85dB @ 1W/m |
Max SPL: | 108dB |
Recommended Power Amplifier: | 75W to 300W |
Nominal Impedance: | 8 Ohm |
Crossover Frequency: | 2.2kHz |
Connectors: | Binding Posts/4mm Plugs, bi-wire |
Cabinet Dimensions: | H 15" x W 9.1" x D 9.3" (H 381mm x W 232mm x D 236mm) |
Weight: | 10.9kg (24 lbs) |
