In stock: Available
SKU
ATCSCM100ASL
Be the first to review this product

Retail Price: $41,999.00

Your Price: $29,999.00 29999 InStock
You Save: $12,000.00 (29%)

Please allow up to 6-8 weeks lead time for finishing.

Discount:

Already marked down to our lowest price

Shipping:

Free shipping available on this item
By:
ATC

Earn 29999 points ($ 599.98) toward a future purchase when you buy this product. Learn more.
ATC - SCM100 ASL - Classic Series 12" 3-Way Active Speakers (Pair) is available to buy in increments of 1

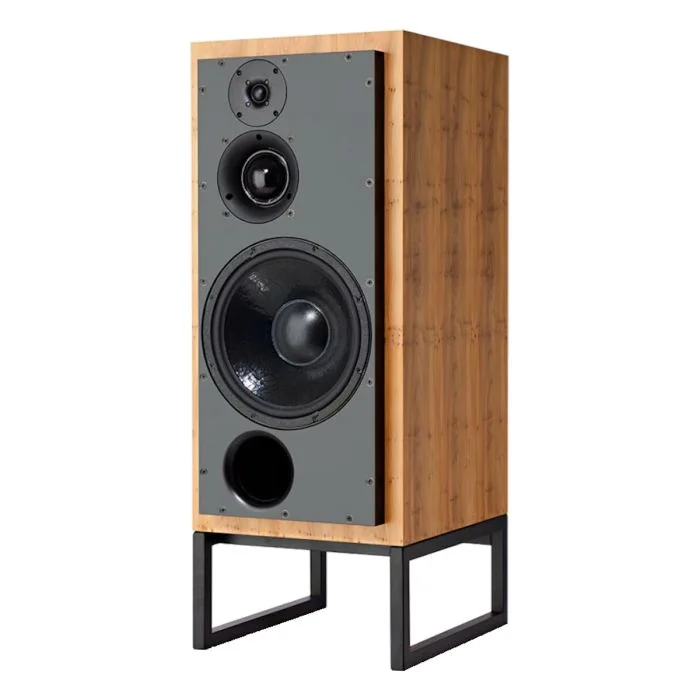

ATC - SCM100 ASL - Classic Series 12" 3-Way Active Speakers (Pair)

ATC - SCM100 ASL - Classic Series 12" 3-Way Active Speakers (Pair)

The SCM100 ASL (active) and SCM100 SL (passive) are designed to perform at their best with the finest quality hi-fi equipment.

Like their smaller brother, the SCM50 ASL, the monitors’ ability to reproduce music and speech with phenomenal accuracy, transparency and dynamics lies mainly in the SM75-150S soft dome midrange driver. However, recent modifications that include an upgraded tweeter and enhanced port profile have brought about further improvements in all performance parameters.

Bass performance is equally impressive, thanks to ATC’s 12″ professional level bass driver that incorporates the company’s unique Super Linear Magnet technology. Bass, mid and HF drive units in the active model have their own dedicated and individually matched MOSFET amplifiers.

ATC’s active crossover network consists of a wide band-width, electronically balanced input stage with high common mode rejection and very low distortion.

In passive form, the SCM100 SL provides broad and symmetrical dispersion, excellent amplitude and phase characteristics throughout the audio frequency range.

SPECIFICATIONS:

Drivers
HF 25mm Mid 75mm LF 314mm Super Linear

Amplitude Linearity ±2dB
65Hz – 17kHz

Frequency Response -6dB
32Hz & 22kHz

Matched Response
±0.5dB

Dispersion
±80° Coherent Horizontal ±10° Coherent Vertical

Max continuous SPL @1m
115dB SPL

Crossover Frequency
380Hz & 3.5kHz

Input Connector
XLR

Input Sensitivity
1V

Input Impedance
>10k ohms balanced XLR

Amplifier Output
HF 50 Watts RMS MF 100 Watts RMS LF 200 Watts RMS

Overload Protection
LDR tweeter protection, plus active FET MGR (amplifiers)

Power Requirements
Voltage
100, 115, 230 (factory set)

Frequency
50/60Hz

Power
Nominal 90 Watts, Driven 350 Watts

Cabinet Dimensions(HxWxD)
32.8" x 15.7" x 22.9"
834 x 400 x 585mm including amps (stands add 200mm (3")to height)

Weight
143 lbs ea
64.8kg
