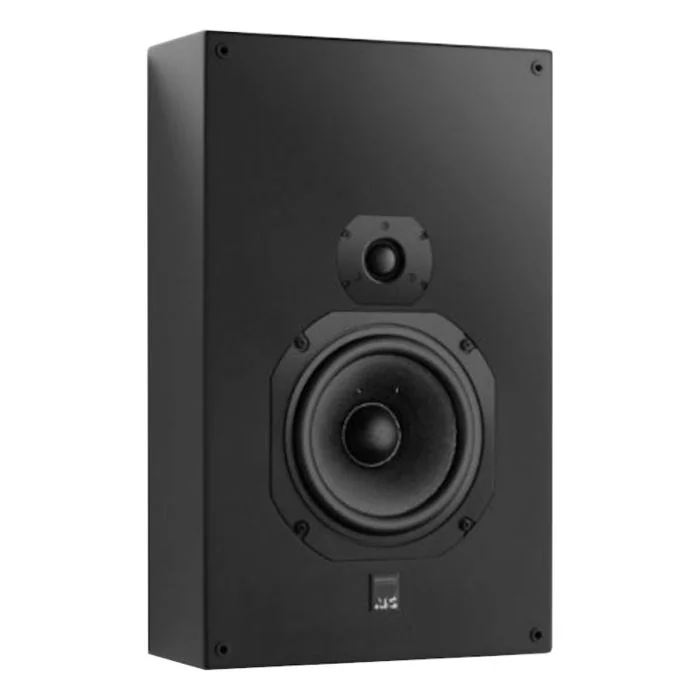

ATC - HTS11 - On-Wall Series 6" 2-Way Speaker (Single)
SPECIAL ORDER: Please allow 1-2 weeks for Processing and Shipping. For more information please send us a message. Or, call 877-370-1972. Thank you.
ATC - HTS11 - On-Wall Series 6" 2-Way Speaker (Single)
This mid-size 2-way design is suitable for main speakers in medium sized rooms and may also be used as surround speakers in larger rooms. Available in portrait and landscape versions, in either white or black satin finishes, the HTS11’s clean, simple visual design can be seamlessly integrated into a wide range of interiors and décors.
Created to provide world-class TV/cinema sound and the reproduction of high resolution music in your home the new HTS range of speakers from ATC features class-leading drive unit and crossover technologies integrated into discreetly styled cabinets. Each model has been sympathetically designed to fit seamlessly into any domestic setting – whether mounted onto or recessed into walls.
Manufactured in house to exacting tolerances, ATC’s drivers are legendary for their many design innovations. For instance, the hand wound short voice coils use only high density edge-wound OFHC copper ribbon wire and operate in a precision long magnetic gap. Front and rear venting not only reduces noise from airflow but also increases power handling and long term reliability. Furthermore, the massive magnet assemblies provide a no compromise optimisation for each voice coil diameter and driver application.
The unique soft dome technology that features in the mid driver was developed by ATC in 1976. Its arrival revolutionised professional studio monitoring. Remarkably today, as then, it remains the only midrange driver capable of giving ultimate performance.
ATC’s new SH25-76 tweeter shares technology with the renowned ATC soft dome midrange drive unit and employs a unique dual suspension system, suppressing rocking modes – even at high output levels – and a short edge-wound voice coil in a long narrow magnetic gap ensuring exceptionally low distortion throughout its operating band.
The bass-mid CLD (constrained layer damping) driver incorporates this new technology and represents a step-change in system performance and the reproduction of music. CLD diaphragm technology reduces harmonic distortion across critical mid-range frequencies when compared to conventional cones providing an extended magnitude response and improved off axis response.
Each of the three speakers in the Home Theatre Series not only features ATC’s new SH25-76 tweeter but also the drive unit technology found in the company’s outstanding Entry Series. Throughout the HTS range you’ll discover the heritage of engineering found in ATC's Professional Studio monitors, products which are relied upon daily by the world's finest audio, film and music producers and audio engineers.
As with every ATC product each HTS model is individually hand built to give a lifetime of service and musical enjoyment and carries a six year Manufacturer's Warranty.
FEATURES:
- No compromise driver technology borrowed from ATC’s high-end studio monitoring products
- High dynamic range for accurate reproduction of musical transients and high-impact film soundtracks
- Neutral voicing and very low distortion delivers audiophile performance from an install package
- Hidden wall mounting brackets and input terminals
- Handmade bass/mid driver employing CLD cone technology for class-leading mid-range clarity and balance
- 6-Year Manufacturer's Warranty
- Handmade in England
SPECIFICATIONS:
MODEL NUMBER | HTS11 | ||||
---|---|---|---|---|---|
DRIVERS | High Frequency: | ATC 25mm (0.98") Neo Soft Dome | |||
Mid/Low Frequency: | ATC 150mm (5.91") CLD | ||||
MATCHED RESPONSE | Frequency Response: | ±0.5dB | |||
Half Space Radiation -6dB: | 40Hz – 22kHz | ||||
Dispersion: | ±80° Coherent Horizontal, ±10° Coherent Vertical | ||||
Sensitivity: | 85dB @ 1W/m | ||||
Max SPL: | 108dB | ||||
Recommended Power Amplifier: | 75W to 300W | ||||
Nominal Impedance: | 8 Ohm | ||||
Crossover Frequency: | 2.2kHz | ||||
Connectors: | Binding Posts/4mm Plugs | ||||
DIMENSIONS | With Grill: | H 19.3" x W 12" x D 5.4" (H 490mm x W 305mm x D 137mm) | |||
Without Grill: | H 19.3" x W 12" x D 4.9" (H 490mm x W 305mm x D 125mm) | ||||
Horizontal With Grill: | H 12" x W 19.3" x D 5.4" (H 305mm x W 490mm x D 137mm) | ||||
Horizontal Without Grill: | H 12" x W 19.3" x D 4.9" (H 305mm x W 490mm x D 125mm) | ||||
Weight: | 11kg (24.3 lbs) |
