ATC - CA2 - Analog Stereo Preamplifier
SPECIAL ORDER: Please allow 1-2 weeks for Processing and Shipping. For more information please send us a message. Or, call 877-370-1972. Thank you.

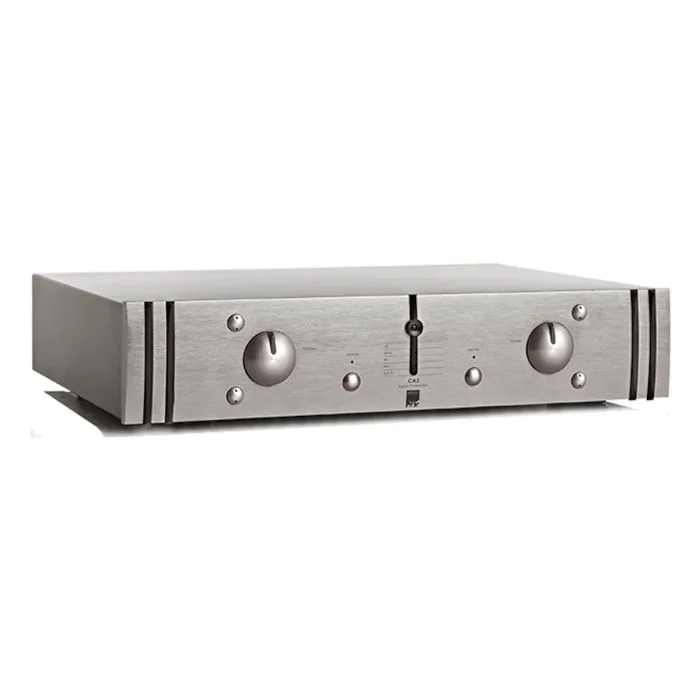

ATC - CA2 - Analog Stereo Preamplifier
Given ATC’s history manufacturing active loudspeakers, a partnering preamplifier was a logical step and our first preamp, the SCA2 was released in 1996. The CA2 – a simpler design yet still offering exceptional performance – is derived from the ‘high-end’ SCA2 and maintains its exceptional performance, but with fewer features. It is equally adept at driving active loudspeakers as paired with one of ATCs power amplifiers and a wide range of inputs and outputs ensure outstanding compatibility with a very wide range of partnering equipment.
Today, ATC’s portfolio of high-end audio electronic products continues to expand... from the breathtaking CA2 preamplifier to the exquisite P2 power amplifier. In 2011 the Company launched its first CD player, the CDA2, a design that also incorporated a preamplifier and DAC. In response to changing listening trends, in early 2018 the CDA2 was significantly upgraded and relaunched – the Mk2 model now boasting the latest high performance CD drive technology and USB interface allowing playback of extremely high resolution PCM and DSD audio.
Seen as a further evolution of this highly acclaimed digital source is ATC’s new stand-alone CD player, the CD2, which has been designed in parallel with a matching 100W integrated amplifier, the SIA2-100. Offering a built-in high resolution asynchronous USB interface the amplifier also incorporates a premium AKM stereo 32-bit DAC. These outstanding components offer music lovers an exceptional combination of performance and functionality.
Built to give a lifetime of service and musical enjoyment, all ATC products carry a six year Manufacturer's Warranty.
FEATURES:
- Discrete Class-A low-noise circuitry evolved from high-end SCA2 preamp
- MC/MM RIAA Phono Stage with adjustable gain/loading
- High-Performance Headphone Amplifier
- 5 x stereo RCA/Phono inputs
- IR Remote Control
- Hand built in the UK
- 6-Year Manufacturer's Warranty
SPECIFICATIONS:
Frequency Response: | D.C. – >500kHz (-3dB) |
THD: | <0.0005% / -106dB (1kHz, 1V, 600 Ohms) |
S+N/N Ratio: | >108dB (IEC ‘A’) |
Crosstalk: | >90dB (10Hz – 20kHz) |
Input sensitivity: | 150mV (re. 1V out) |
Maximum Output Level: | 7.5V RMS (600 ohms) |
Analogue Preamp Outputs: | 2 x stereo pair RCA/Phono, 1 x stereo pair male XLR (all unbalanced) |
Headphone Amp Output: | 1 x via 6.35mm jack |
Analogue Tape Output: | 1 x stereo pair RCA/Phono |
Analogue Line Inputs: | 5 x stereo pairs RCA/Phono |
RIAA Phono Input: | 1 x pair via RCA/Phono; MC/MM with adjustable gain & loading |
Dimensions: | H 3.7" x W 17.7" x D 13" (H 94mm x W 449mm x D 330mm) |
Weight: | 6kg (13.2 lbs) |
