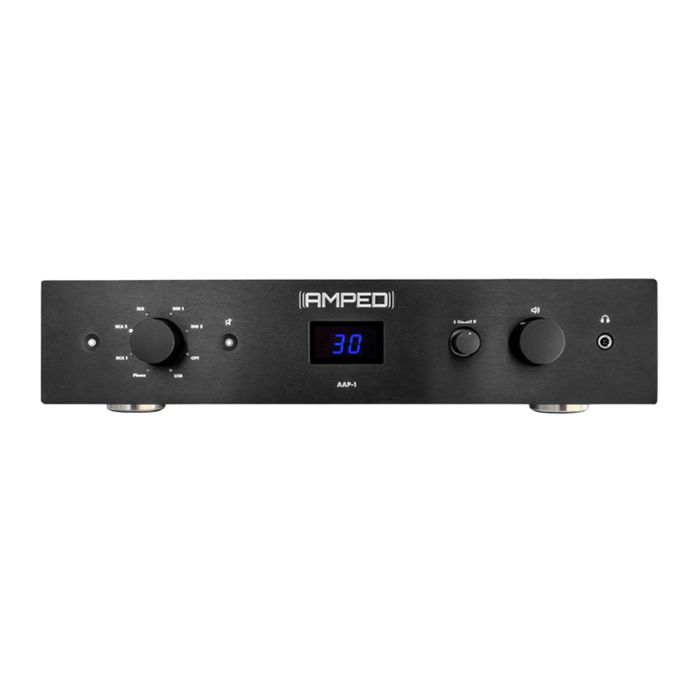

AMPED - AAP-1 - High Performance 2-Channel Pre-Amplifier w/ DAC
SKU
AMP-AAP-1
AMPED - AAP-1 - High Performance 2-Channel Pre-Amplifier w/ DAC is available to buy in increments of 1
No further discounts or coupons apply.
FREE delivery OVER $35 (USA ONLY)
30-day return
AMPED - AAP-1 - High Performance 2-Channel Pre-Amplifier w/ DAC
Designed with Audiophile Ultra Sonic Performance (AUSP™) & Fully Protected High Efficiency Power Supply with Auto Selectable Mains (HEPS™) technologies to deliver the most incredible music and sound experience you have ever heard.
Core Technology
- Audiophile Ultra Sonic Performance (AUSP™)
- Fully Protected High Efficiency Power Supply with Auto Selectable Mains (HEPS ™)
FEATURES:
Additional Protection
- Universal Mains, Automatically Adapts to All Mains World Wide
- Regulated DC Voltage, Delivers Consistent Power
- Full Power Bandwidth All the Way Up / Down
- High Efficiency Power Supply for High Power in Compact Size
Digital Audio Inputs
- 2 Digital Gold-plated RCA Connectors
- 1 Optical Audio Connector
- 1 USB
Analog Audio Inputs
- 2 L/R XLR Connectors (Balanced)
- 4 L/R Gold-plated RCA Connectors (Unbalanced)
- 2 Phono Gold-plated RCA Connectors
Analog Audio Outputs
- 2 L/R XLR Connectors (Balanced)
- 2 L/R Gold-plated RCA Connectors (Unbalanced)
- 2 Phono Gold-plated RCA Connectors
Control
- Stand By Front Power Switch
- Main Rear Power Switch
- 12V In/Out Remote Trigger
Certifications
- CE Approved
- ROHS compliant
Warranty
- 5 Years Parts & Labor
Manufacturer
- Designed, Engineered & Assembled in the USA by Amped America
Benefits
- High-End Quality & High Value Stereo Amplification based on AUSP™ Class D Technology
- Great add-on for Enhancing Stereo Experience from Multi-Channel AVR or Surround Processor
Applications
- High Performance 2-Channel Audio
- Home Theater
- Surround Sound
- Multi-Room & Zone Amplification
SPECIFICATIONS:
FTC Power Output Rating:
400WPC @ 8 Ohm
Power Output Rating:
800WPC @ 4 Ohm
This Rating not tested under the FTC Standard
Number of Channels:
2
Gain:
29dB
Damping Factor:
SE, <1kHz > 1000
Frequency Response:
-3dB @ 8 Ohm, 5Hz – 70kHz
THD and Noise:
(AES17 filter) @ 1kHz, 1W, RL = 8 Ohm, 0.003%
Inter-modulation Distortion (CCIF):
SE, 18kHz and 19kHz, Po = 10W, RL = 8 Ohm, 0.0008%
Transient Inter-modulationDistortion (TIM):
SE, Po = 10W @ 8 Ohm, 0.002%
Dynamic Range:
SE, Un-weighted / A-weighted, 118dB / 120dB
Output Idle Noise:
SE, Un-weighted / A-weighted, 75uVrms / 55uVrms
Input Impedance:
Balanced (XLR) 100k Ohm; Unbalanced (RCA) 50k Ohm
Remote Trigger Voltage:
AC/DC, 4-15V
AC Voltage Range:
120Vac, 85-138 Vac
230Vac, 170-265 Vac
Power Consumption:
0.125" Pink Noise @ 4 Ohm (Both Channels Driven) 300W
Max 1,700W
Standby 3W @120Vac, 6W @230Vac
Front Panel Finish:
Black Anodized Aluminum
Dimensions:
19” W x 3.5” H x 12.25" D
(483mm x 89mm x 311mm)
Weight:
17.5 lbs / 8 Kg
Power Cord:
AWG 14
