Advance Paris -X-A160EVO - Power Stereo Amplifier

Advance Paris -X-A160EVO - Power Stereo Amplifier
Advance Paris X-A160 EVO is a stereo power amplifier designed for systems that need strong output, high current delivery, and clean control from a dedicated amplifier stage. It delivers 2 x 160W RMS at 8ohms and 2 x 240W RMS at 4ohms, giving it the power needed for a wide range of serious loudspeakers. Its updated circuit design, new power supply, and modernized presentation build on Advance Paris’s larger amplifier architecture while keeping the X-A160 EVO practical for refined two-channel systems.
The X-A160 EVO uses very high current NJW0281G and NJW0302G power transistors, the same transistor family used in the MAA 1000. A 700VA toroidal transformer supports stable power delivery, while the ultra-rigid compartmentalized chassis helps isolate internal circuits and reduce unwanted interaction between sections. Hi-Bias mode, selected from the rear panel, allows the amplifier to deliver its first watts in Class A before automatically transitioning into Class AB when more power is required.
For listeners pairing a dedicated preamplifier with a muscular stereo amplifier, the Advance Paris X-A160 EVO offers a balanced mix of refinement and authority. Its wide 10Hz-80kHz bandwidth, greater than 120dB signal-to-noise ratio, and balanced and unbalanced input compatibility make it a capable partner for high-performance source and preamp systems. Front-panel VU meters complete the classic Advance Paris presentation while giving the amplifier the visual presence expected from a serious stereo power block.
FEATURES:
- Stereo power amplifier with 2 x 160W RMS output at 8ohms
- 2 x 240W RMS output at 4ohms
- Class AB amplifier design with selectable Hi-Bias mode
- Hi-Bias mode delivers the first watts in Class A
- Very high current NJW0281G and NJW0302G power transistors
- Power transistor design shared with the MAA 1000 amplifier
- Ultra-rigid compartmentalized chassis reduces circuit interference
- Audiophile-grade components support refined music reproduction
- Balanced and unbalanced input compatibility
- 700VA toroidal transformer for strong power delivery
- Wide 10Hz-80kHz bandwidth

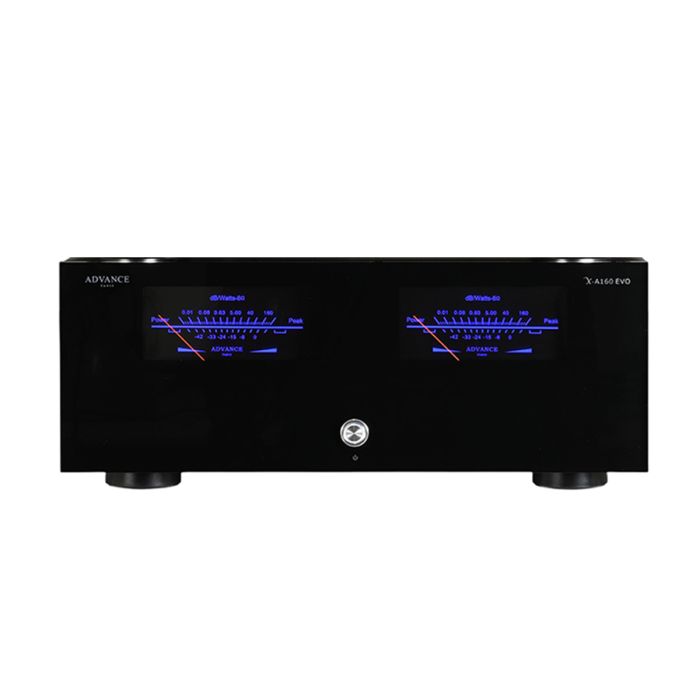

- Front-panel VU meters for classic visual feedback
SPECIFICATIONS:
| Product Type | Stereo Power Amplifier |
| Model | X-A160 EVO |
| Output Power at 8ohms | 2 x 160W RMS |
| Output Power at 4ohms | 2 x 240W RMS |
| Bandwidth | 10Hz-80kHz |
| Distortion | <0.07% |
| Signal-to-Noise Ratio | >120dB |
| Channel Separation | >80dB |
| Asymmetric Input Impedance | 20k ohms |
| Symmetrical Input Impedance | 38k ohms |
| Transformer | 700VA Toroidal Transformer |
| Mains Voltage | 115-230V |
| Standby Consumption | <0.5W |
| Maximum Consumption | 500W |
| Dimensions (W x H x D) | 17.3" x 6.3" x 16.9" (440mm x 160mm x 430mm) |
| Net Weight | 41.8 lbs (19kg) |
