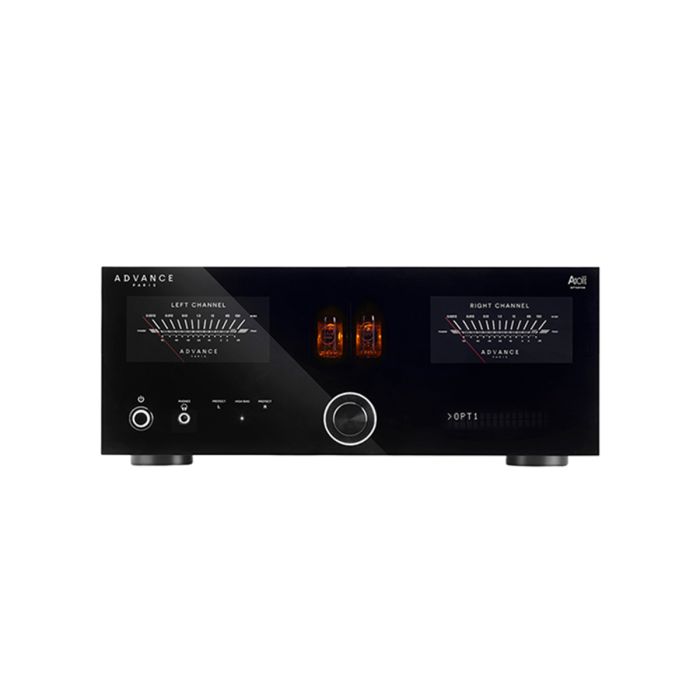

Advance Paris - A12 Apex - Integrated Amp with Pre-Amplification

Advance Paris - A12 Apex - Integrated Amp with Pre-Amplification
Advance Paris A12 Apex Integrated Amplifier is the most powerful model in the Apex integrated amplifier range, built for listeners who want greater drive, refined control, and classic Advance Paris styling. Its hybrid design uses 2 ECC81/12AT7 tubes in the preamplifier stage, giving the amplifier a warm and musical foundation before the signal reaches the Class A/B power section. Finished in black with white VU meters for the 30th Edition, the A12 Apex brings a more commanding look and performance level to serious two-channel systems.
With 2 x 190W at 8ohms and 2 x 292W at 4ohms, the A12 Apex is designed to handle demanding loudspeakers with confidence. Two 280VA toroidal transformers help supply the current needed for strong dynamics, stable imaging, and controlled bass response. The High Bias switch activates double Class A bias, allowing the amplifier to operate with added smoothness and refinement at higher Class A levels. This makes the A12 Apex well suited for listeners who want both muscular output and a polished, engaging presentation.
The A12 Apex is also equipped for complex modern systems. It includes 5 RCA line inputs, MM/MC phono with ground, 2 XLR inputs, 3 optical inputs, 3 coaxial inputs, USB audio, AES-EBU, HDMI eARC, optional A-BTC Bluetooth support, RCA and XLR preamp outputs, dual subwoofer outputs, headphone outputs, and Zone A/B speaker terminals. HDMI eARC allows easy TV integration, while USB audio supports PCM up to 24-bit/192kHz and DSD64/DSD128 playback. For systems that need high power, tube-driven musicality, balanced connectivity, and flexible digital support, the Advance Paris A12 Apex is a strong flagship centerpiece.
FEATURES:
- Hybrid integrated amplifier with 2 x ECC81/12AT7 preamp tubes
- 2 x 190W output at 8ohms
- 2 x 292W output at 4ohms
- Class A/B amplifier design with dual toroidal power supplies
- High Bias switch activates double Class A bias
- ESS9039 DAC for digital source playback
- HDMI eARC input for TV audio integration
- 8 analog inputs including RCA, MM/MC phono, and XLR
- 8 digital inputs including optical, coaxial, USB, and AES-EBU
- Optional A-BTC Bluetooth aptX HD-LL module support
- Dual speaker outputs for Zone A and Zone B playback
- Dual subwoofer outputs for expanded bass systems
- RCA and XLR preamp outputs for system expansion
- Black 30th Edition finish with white VU meters
- Automatic Standby Adjustable from 5 to 60 Minutes
SPECIFICATIONS:
SPECIFICATIONS:
| Product Type | Hybrid Integrated Amplifier |
| Model | A12 Apex 30th Edition |
| Amplification Type | Class A/B with High Bias |
| Preamp Stage | 2 ECC81/12AT7 Tubes |
| Output Power at 8ohms | 2 x 190W, THD+N 1%, 1kHz, 2 Channels Driven |
| Output Power at 8ohms, Full Bandwidth | 2 x 180W, 20Hz-20kHz, THD+N Less Than 0.07% |
| Output Power at 4ohms | 2 x 292W, THD+N 1%, 1kHz, 2 Channels Driven |
| Output Power at 4ohms, Full Bandwidth | 2 x 272W, 20Hz-20kHz, THD+N Less Than 0.07% |
| Frequency Response | 20Hz-80kHz, +/-1dB, 43W, 8ohms |
| Distortion | 0.047%, 1kHz, 135W, 8ohms |
| Signal-to-Noise Ratio | 104.8dB, 1kHz, 135W, 8ohms |
| Transformer | 2 x Toroidal Transformers, 280VA Each |
| DAC | ESS9039 |
| Digital Inputs | 3 Optical, 3 Coaxial, 1 USB Audio, 1 AES-EBU, 1 HDMI eARC, 1 A-BTC Input |
| Optical Input Support | PCM up to 24-bit/192kHz |
| Coaxial Input Support | PCM up to 24-bit/192kHz |
| USB Audio Support | PCM up to 24-bit/192kHz, DSD64, DSD128 |
| AES-EBU Support | PCM up to 24-bit/192kHz |
| HDMI eARC Support | PCM Stereo |
| Bluetooth Support | Optional A-BTC Bluetooth Receiver with aptX HD-LL |
| Analog Inputs | 5 RCA Line Inputs, 1 MM/MC Phono Input with Ground, 2 XLR Line Inputs |
| Analog Outputs | 1 RCA REC-OUT, 1 RCA PRE-OUT, 1 XLR PRE-OUT, 2 RCA SUB-OUT |
| Headphone Outputs | 6.35mm Jack and 3.5mm Mini-Jack |
| Trigger | 12V Input and 12V Output |
| Update Port | USB Key Update Port |
| Speaker Terminals | 2 Screw Terminals Compatible with Bare Wire, Spades, and Banana Plugs |
| Remote Control | Infrared REM-19, Compatible with A12 Apex and ACD |
| AC Input Compatibility | 115/230V, 50/60Hz |
| Dimensions (W x H x D) | 16.9" x 7.5" x 17.8" (43cm x 19.2cm x 45.4cm) |
| Packaging Dimensions (W x H x D) | 21.4" x 11.6" x 21.0" (54.5cm x 29.5cm x 53.5cm) |
| Net Weight | 40.2 lbs (18.2kg) |
| Gross Weight | 48.2 lbs (21.9kg) |
