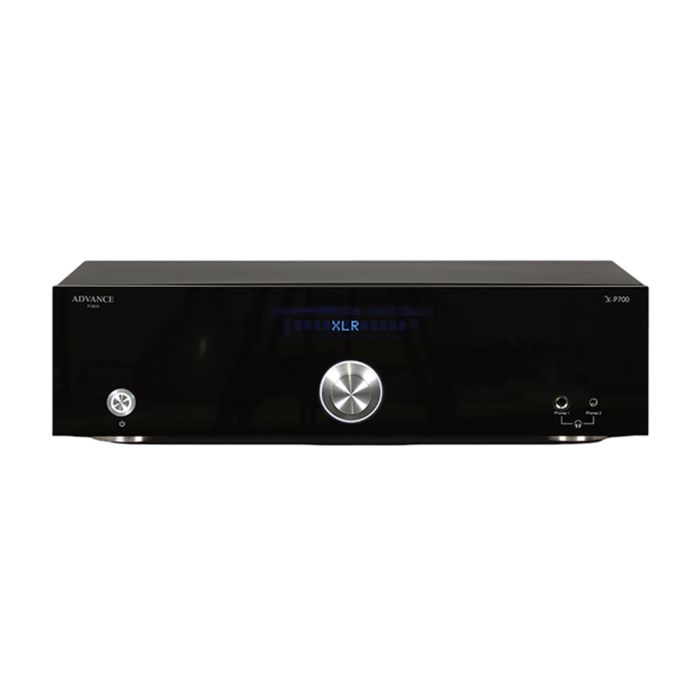

Advance Paris - X-P700 - Advanced Stereo Preamp
Advance Paris X-P700 Classic is an advanced stereo preamplifier designed for listeners building a dedicated separates-based hi-fi system. As the successor to the X-P500, it adds a dual mono layout, Direct Path signal processing, and a choice of output schemes for system matching. Users can select a Class A mode with bipolar components in a double cascade arrangement or a more traditional discrete mode using JFET differential circuitry with bipolar current mirror operation.
The X-P700 is built with broad source support for both analog and digital systems. It includes 9 analog inputs, including 1 balanced input and 1 MM/MC phono input, plus digital inputs for optical, coaxial, USB-B XMOS, and USB-A sources. Its Burr Brown PCM1796 DAC supports 24-bit/192kHz conversion, while output options include full-range RCA, balanced XLR, high pass output, and 2 subwoofer outputs with selectable crossover frequency. Bass, treble, balance, loudness, bypass, input selection, and volume can be handled from the front rotary control or the supplied remote.
For headphone users, the X-P700 includes both 6.35mm and 3.5mm front-panel headphone outputs with independent gain and impedance adjustment for each jack. Internally, dual high-capacity toroidal transformers supply filtered and regulated dual mono power to the motherboard and preamp stages. With its 10mm black methacrylate front panel, flexible phono stage, balanced connectivity, digital conversion, and subwoofer integration, the Advance Paris X-P700 Classic is built as a serious control center for pairing with high-quality power amplifiers.
FEATURES:
- Advanced stereo preamplifier with dual mono design
- Direct Path signal processing for clean audio routing
- Class A and discrete Class AB output mode options
- 9 analog inputs including balanced XLR input
- MM/MC phono input with adjustable cartridge support
- Burr Brown PCM1796 24-bit/192kHz DAC
- Optical, coaxial, USB-B, and USB-A digital inputs
- Balanced XLR and unbalanced RCA full-range outputs
- Controls - Input, Volume, Bass, Treble, Balance, Loudness, and Bypass
- Selectable crossover frequency for subwoofer integration
- 6.35mm and 3.5mm front headphone outputs
- Independent headphone gain and impedance adjustment
- Dual toroidal transformers for regulated power delivery
- 10mm black methacrylate Classic Line front panel
SPECIFICATIONS:
| Product Type | Stereo Preamplifier |
| Model | X-P700 Classic |
| Design | Dual Mono with Direct Path Signal Processing |
| Output Mode Options | Class A Mode and Discrete Class AB Mode |
| Output Level | 10.5 +/-0.5dB |
| Frequency Response | 10Hz-150kHz |
| Distortion | <0.01% |
| Signal-to-Noise Ratio | ≥110dB |
| Channel Separation | ≥100dB |
| Unbalanced Input Impedance | 23k ohms |
| Balanced Input Impedance | 35k ohms |
| CD/AUX Input Level | <500mV |
| Phono MM/MC Input Level | 48dB / 64dB |
| Audio Receiver | CS8416 |
| Analog Inputs | 9 Analog Inputs Including 1 Balanced Input and 1 MM/MC Phono Input |
| Digital Inputs | 2 Optical, 1 Coaxial, 1 USB-B XMOS, 1 USB-A |
| Full-Range Outputs | Unbalanced RCA and Balanced XLR |
| Additional Outputs | High Pass Output and 2 Subwoofer Outputs with Selectable Crossover Frequency |
| Headphone Adjustments | Independent +6dB, 0dB, -4dB Gain and 0 or 100ohms Output Impedance |
| Transformer | 2 Toroidal Transformers |
| AC Input | 110-230V |
| Maximum Consumption | ≤30W |
| Dimensions (W x H x D) | 17.3" x 6.1" x 16.9" (440mm x 155mm x 430mm) |
| Net Weight | 31.3 lbs (14.2kg) |
| Gross Weight | 34.3 lbs (15.6kg) |
